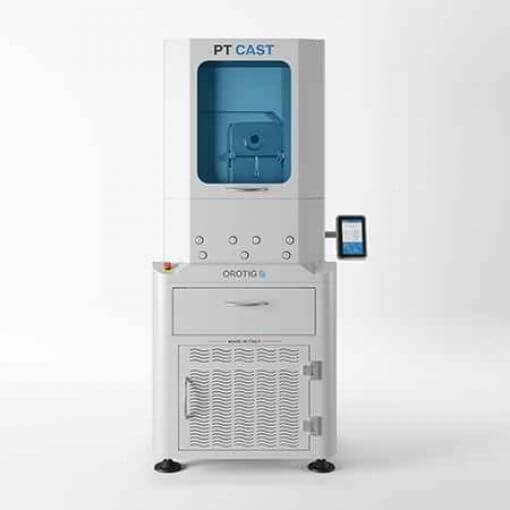

PT Cast
R1,207,500.00
PT Cast – Special order only. Quote can be provided at current exchange rate & dependant on accessories required. Prices vary
PT cast is the next-generation casting machine for platinum casting. Perfect for the jewellery industry, it casts up to 350 gr of platinum at once. The casting process takes place in a vacuum and controlled atmosphere with Argon gas to avoid oxidation of the alloy. Crucible and casting chamber are water-cooled to allow non-stop work.
| MODEL | PT cast |
| TYPE OF GENERATOR | Inverter #2 modules |
| MACHINE POWER SUPPLY | 230 Vac±10% 50/60 Hz 350W |
| GENERATOR POWER SUPPLY | 400 Vac±10% 50/60 Hz 6W |
| FUSION TYPE | TIG / WIG |
| MAX AMOUNT OF METAL | 350 gr Pt |
| FLASK MAX DIMENSION | =150 mm, H=180 mm |
| PROTECTIVE GAS MIN PRESSURE | 1,5 bar |
| VACUUM PUMP AND COMPRESSOR | External |
| WORKING CYCLE | > 6 / hour |
| COOLING SYSTEM | Forced air and water cooling for crucible and melting chamber |
| MACHINE WEIGHT | 366 Kg |
| GENERATOR WEIGHT | 42 Kg |
